1:1 cladding patterns · Android · iPhone · any browser
Stop marking out.
Start cutting.
True 1:1 cladding patterns for 27 fittings. Print them, or send them to the CNC.
Free elbow, reducer and pipe chart. Pro from £1.99 a month · £14.99 a year · £29.99 once.
- Pick
- Size
- Lag
- Seam
- Unwrap
How it works
Sizes in. Check it. Print it.

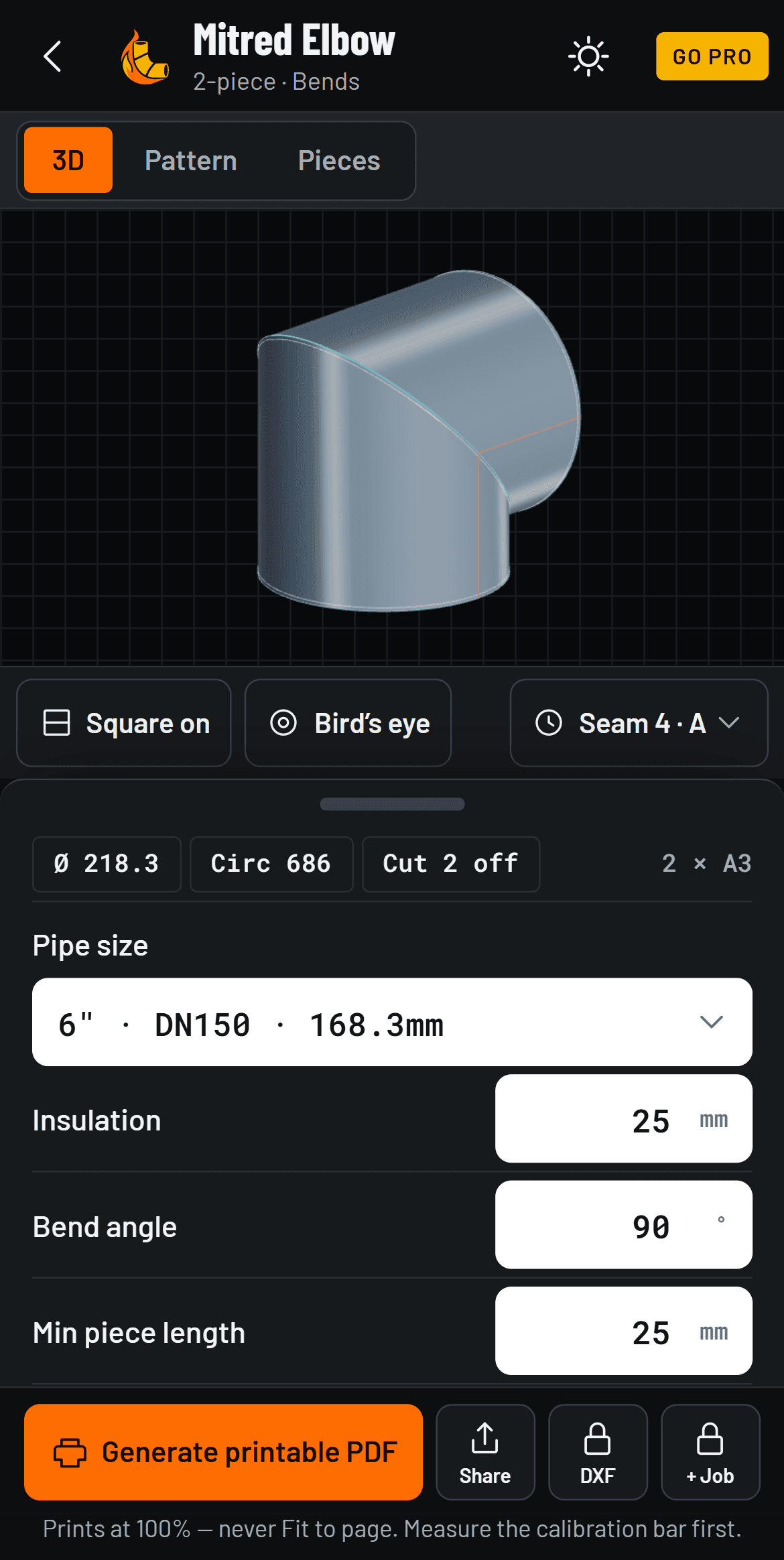

Put in your sizes

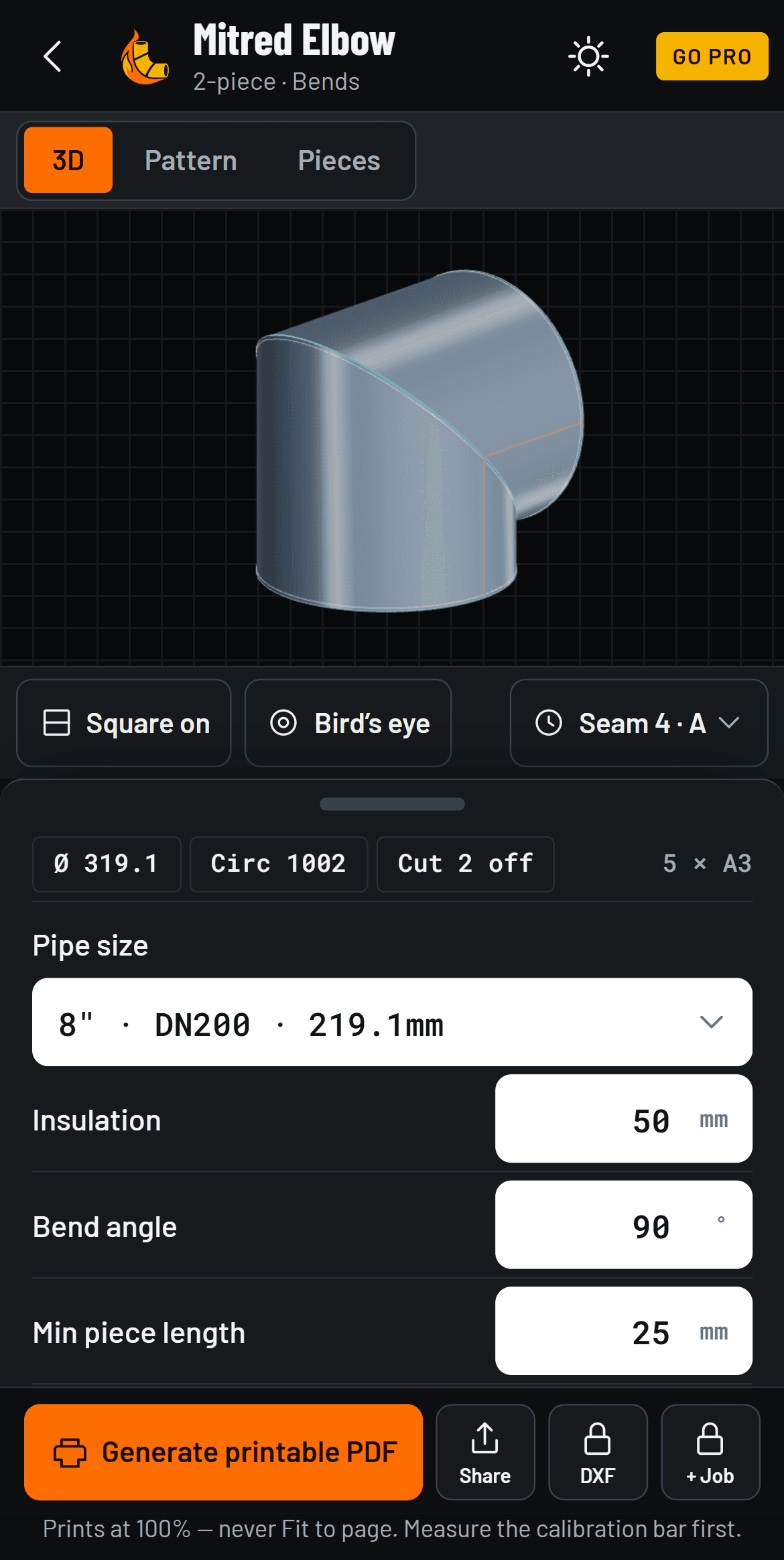

Pipe, lagging, angle. It works to the outside of the lagging.

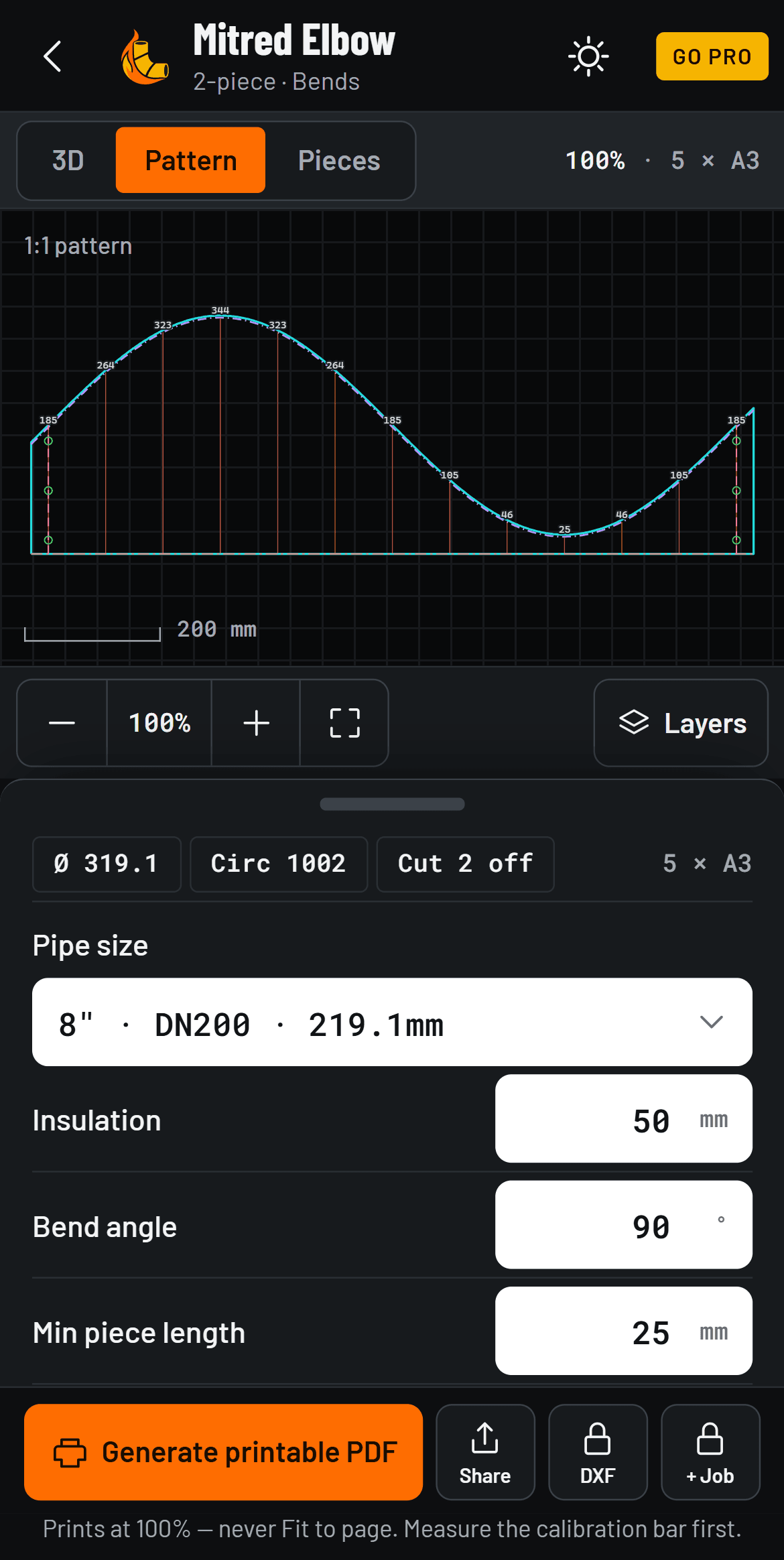

A 100 mm check bar on every sheet, crosshairs to line the sheets up, and the laps, swage lines and hole centres already on the cut.
The fittings
27 fittings. Six families.
+ One-Piece Tee, Trunnion, Tee on Reducer, Tee on Dome, Tee on Tank Top
All 6 tees & branches+ Rectangle to Round, Oblique to Round, Right Angle to Round, Oblique Transformer
All 5 transitions+ Dished End, Hemispherical Dome, 2:1 Ellipsoidal Head, Torispherical Head, Spherical Cap
All 6 vessel endsOn the bench
The same engine on a monitor.

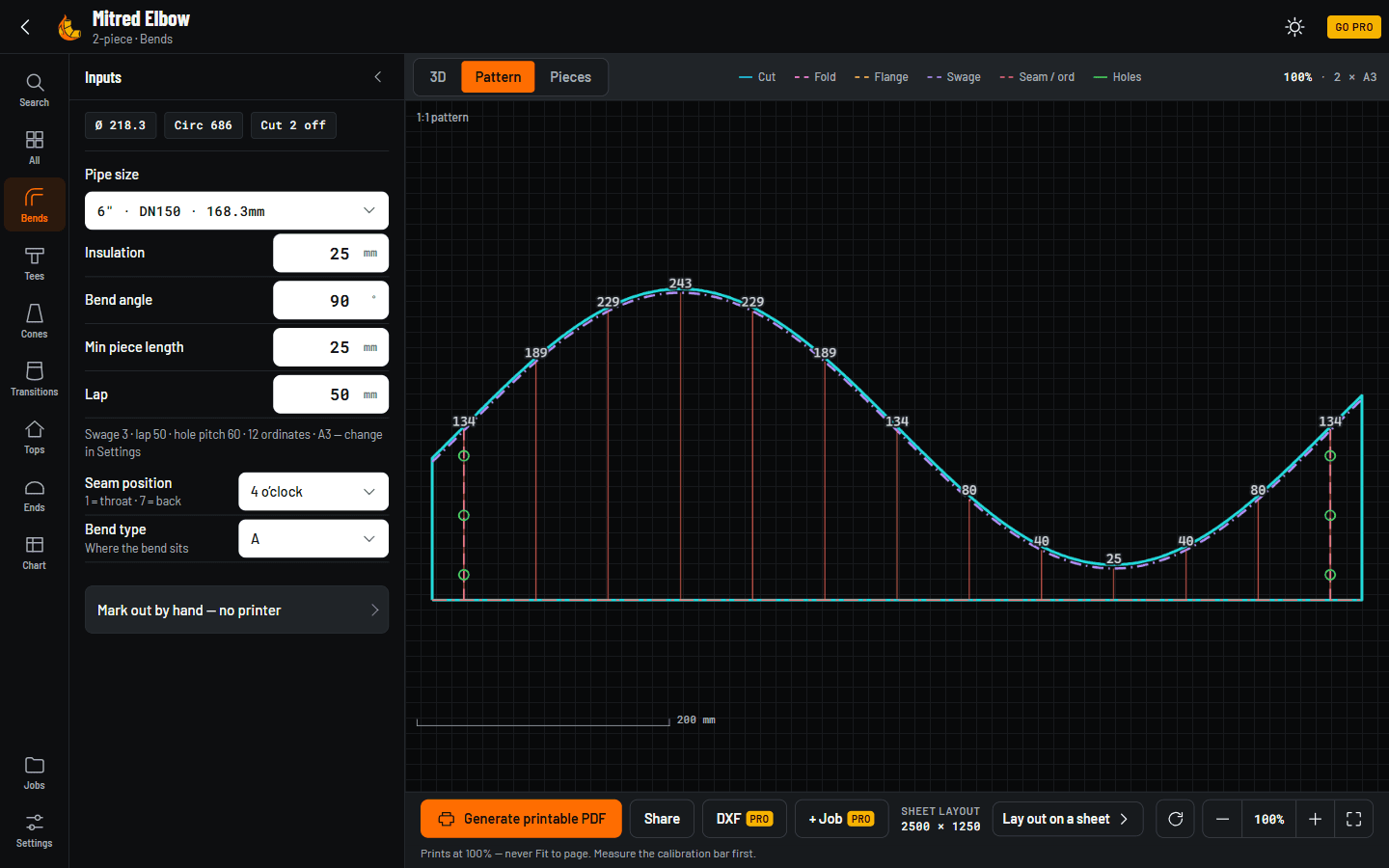

Rail, inputs column, drawing filling the rest. Every figure with its unit in the box.
- Icon rail and family flyout, search from the keyboard
- Tall patterns lie down; turn them back with one click
- DXF for the plasma: holes, centre marks and kerf your way
Who built it
Craig Sword, STX Insulation Ltd.
A working insulation and sheet-metal tradesman in Berwick-upon-Tweed. TurboClad is the tool he wanted on the job: the sizes in, the template out, nothing in between.
v4.80.0 · updated 27 Oct 2026 · 27 fittings
Get the app
Free to start. Pro from £1.99.
Free to prove it on your own metal. Pro £1.99 a month, £14.99 a year, or £29.99 once, for good.
Android
Install it from Google Play. Pro is bought inside the app, on the same prices, and a code bought on this site works in it too.
iPhone · iPad
- 1Open app.turboclad.co.uk in Safari.
- 2Tap Share at the bottom of the screen.
- 3Tap Add to Home Screen, then Add.
It sits on your Home Screen like any app and works with no signal. Not on the App Store yet, so this is the way in for now.
Computer · any browser
Nothing to install. The desktop layer from 1024px up: rail, inputs column, the drawing filling the rest. Print straight onto A4 or A3 from the desk.
